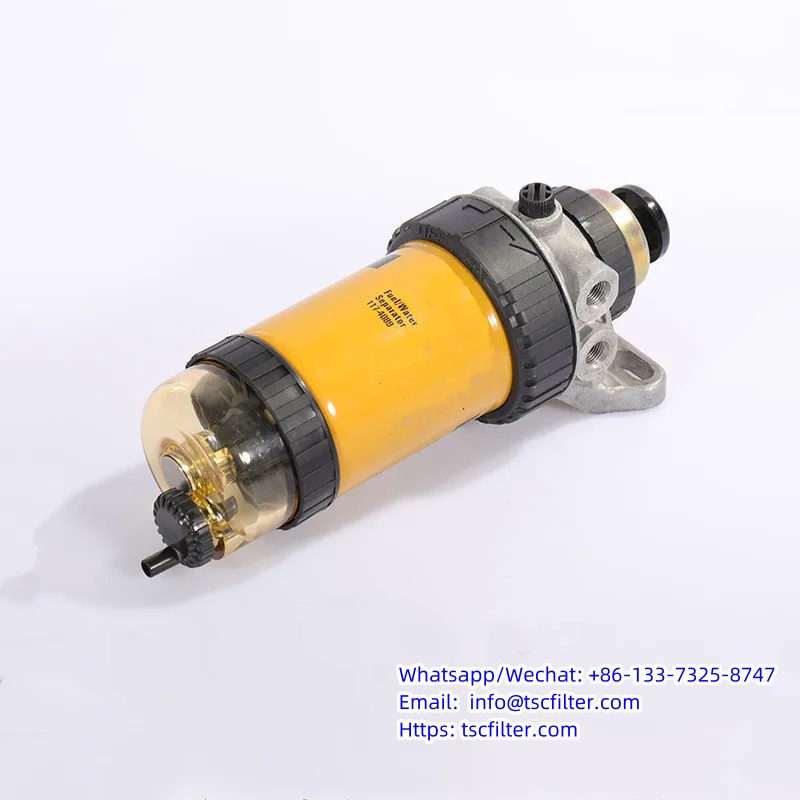

Fuel filter Assy 117-4089 complete with hand pressure pump cup

Fuel filter Assy 117-4089 complete with hand pressure pump cup









Product information:

• Filter type : Screw-on Filter
• Country/Region of Manufacture: China
• Filter OEM 117-4089   145-8862 32/925869

Product Description
1. Loosen the self-venting drain plug to drain water from the bowl into a container.
2. Tighten the drain.
3. Use a primer bulb to fill the filter with fuel.
4. Start the engine and check to ensure there are no leaks.

To Replace
1. Loosen the self-venting drain plug and drain the into a container.
2. Remove the filter from the mounting bracket with the bowl connected.
3. Remove the bowl from the filter sand and clean the o-ring gland on the bowl. BOWL IS REUSABLE * DO NOT DISCARD IT.
4. Lubricate the o-ring with oil or grease and install on a bowl.
5. Install bowl onto new, tighten by hand.
6. Lubricate the filter top seal with oil or grease.
7. Fill the filter/bowl assemble with clean fuel and attach it to the mounting bracket, tighten it by hand.
8. Start the engine and check to ensure there are no leaks.

Replaces Mercury, Mercruiser, Quicksilver, Yamaha, Suzuki, SMI, Volvo Penta, Sierra, AquaPower, Honda, Tohatsu
