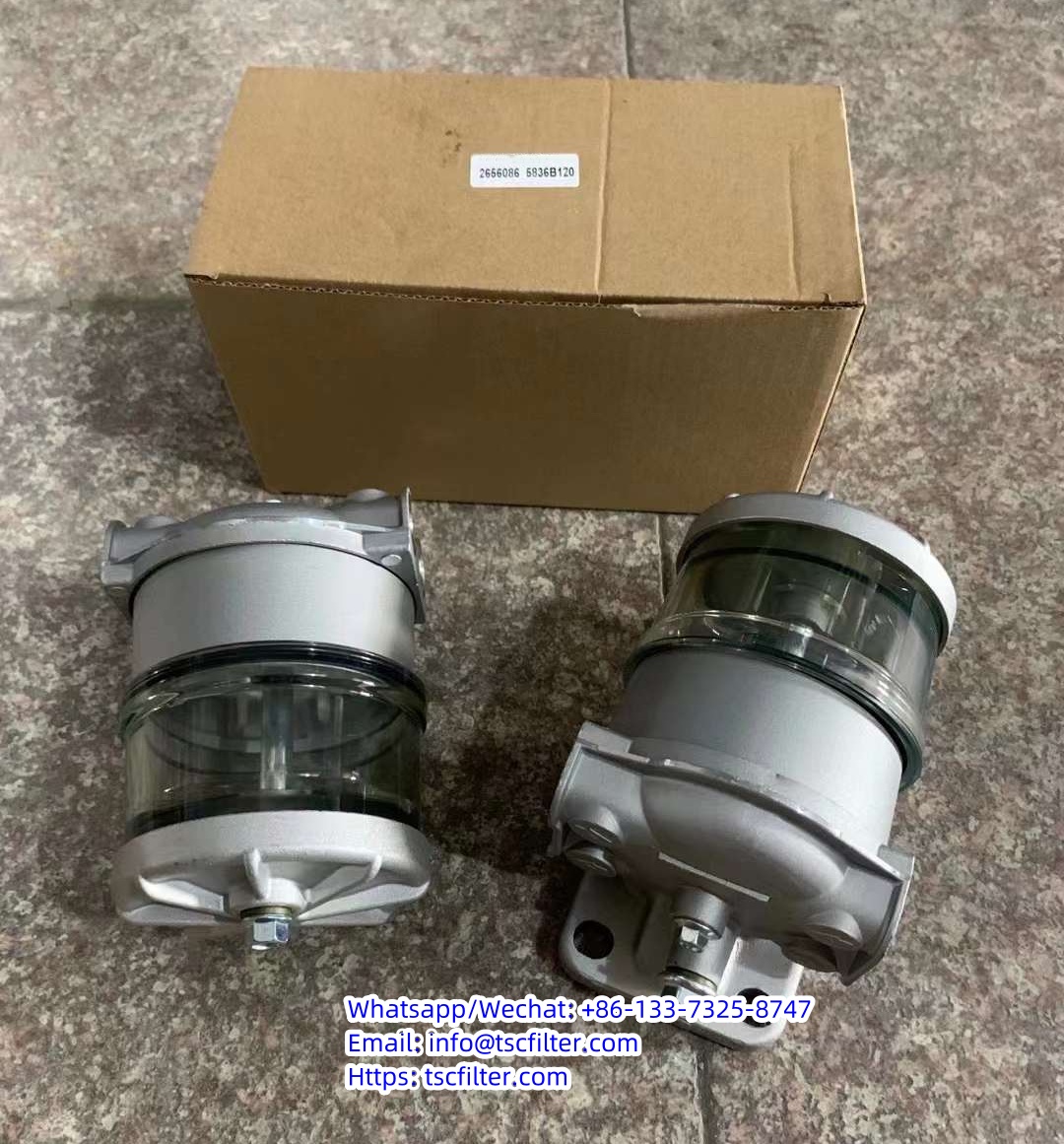

Fuel filter Assy 2656086 5836B120 complete

2656086 Basic Information

Fuel filter 2656086, 5836B120

Filter type: Screw-on Filter

Country/Region of Manufacture: China

in/out size: 1/2”-20

Product Description

1. Loosen the self-venting drain plug to drain water from the bowl into a container.
2. Tighten the drain.
3. Use a primer bulb to fill the filter with fuel.
4. Start the engine and check to ensure there are no leaks.

To Replace
1. Loosen the self-venting drain plug and drain it into a container.
2. Remove the filter from the mounting bracket with the bowl connected.
3. Remove the bowl from the filter sand and clean the O-ring gland on the bowl. THE BOWL IS REUSABLE. * DO NOT DISCARD IT.
4. Lubricate the O-ring with oil or grease and install it in a bowl.
5. Install the bowl onto the new one, tightening by hand.
6. Lubricate the filter top seal with oil or grease.
7. Fill the filter/bowl, assemble it with clean fuel, attach it to the mounting bracket, and tighten it by hand.
8. Start the engine and check to ensure there are no leaks.

Our Company

Advantage:

1. Manufacturer
2. Competitive prices
3. Optimum paper folding
4. Large dust-holding capacity
5. Good temperature resistance
6. Good anti-humidity performance
7. No distortion of pleats
8. Environmentally Friendly
9. OEM & ODM customization  services
10. On-time delivery
11. Economical, practical, and easy to install

Service provided:
OEM, ODM & OBM service; neutral packaging or according to the customer’s needs.
Quality Guarantee:
If there are any quality problems with products, we are willing to replace them free of charge.
After-sales service:
If there is any problem caused by using the products:

1) Keep the defective products and contact us.

2) Do not cut or change any suspected problem products. If necessary, send the suspected filter, the attached oil, and the coolant sample to us together.

3) Attached the repair document, parts list, labor costs, and any other materials that can support a compensation claim.

FAQ

1. What kind of packaging is it?

Do the neutral packaging or customers’ requirements.



2. Could I get some samples? How could I pay the sample payment?

A: We are honored to offer you samples.  We accept the sample payment via Western Union or the Bank of China.



3. How long is your delivery lead time?

A: If there is stock, the lead time is about one week after we get the payment.

If it needs to be produced, it will be 7-20 days after we get the prepayment.



4. Could you calculate the shipping cost for me?

A: Yes, we can quote you the goods cost and shipping cost together.

Please let us know which seaport or airport is closest to you.



5. How long is the warranty?

A: Under normal working conditions, it is usually 8,000 to 10,000 kilometers, or 500 hours.
