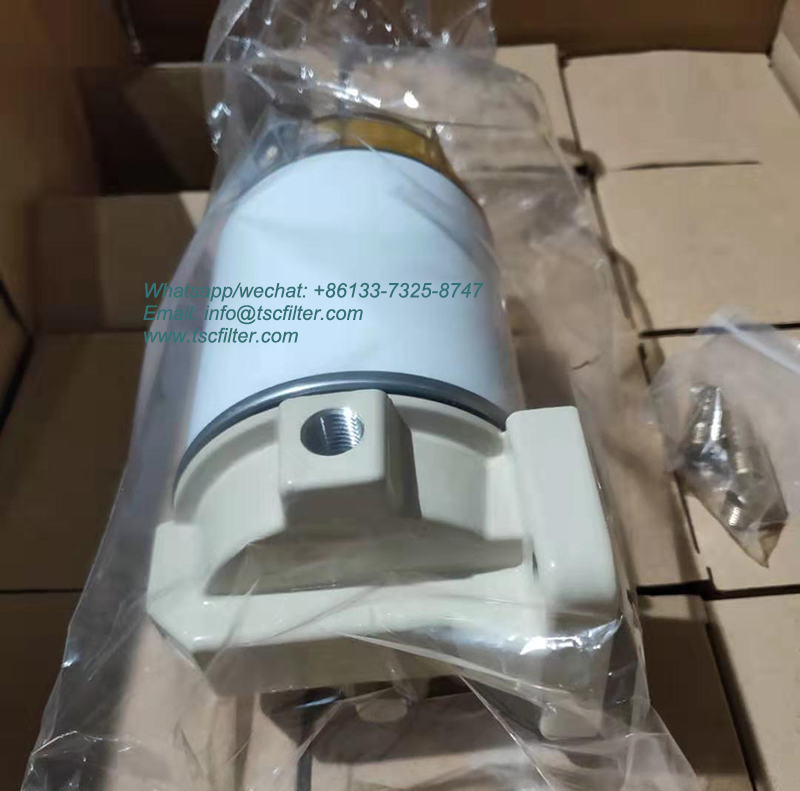

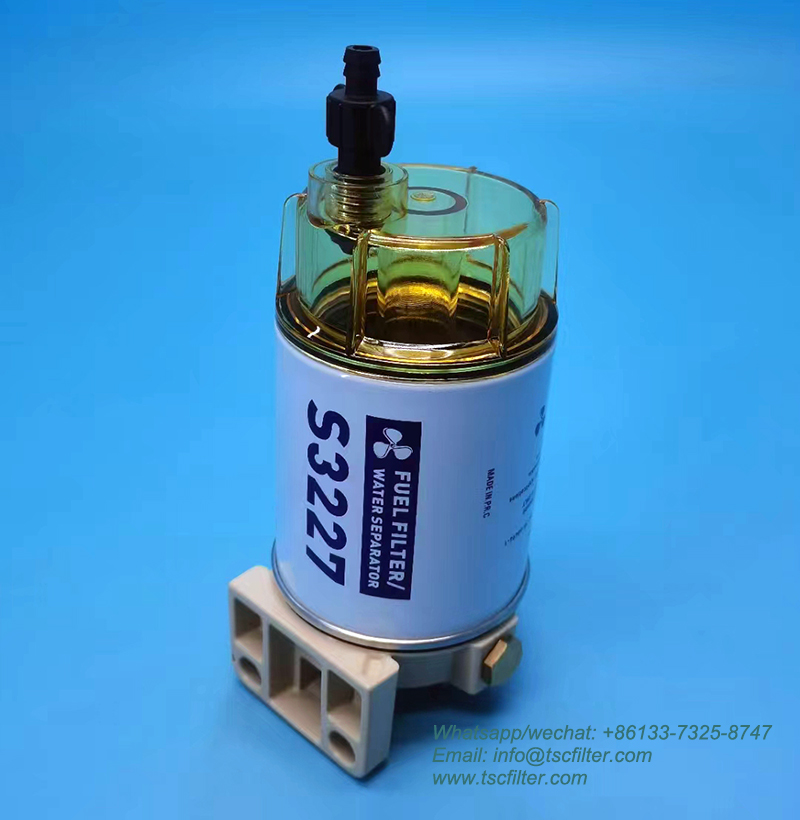

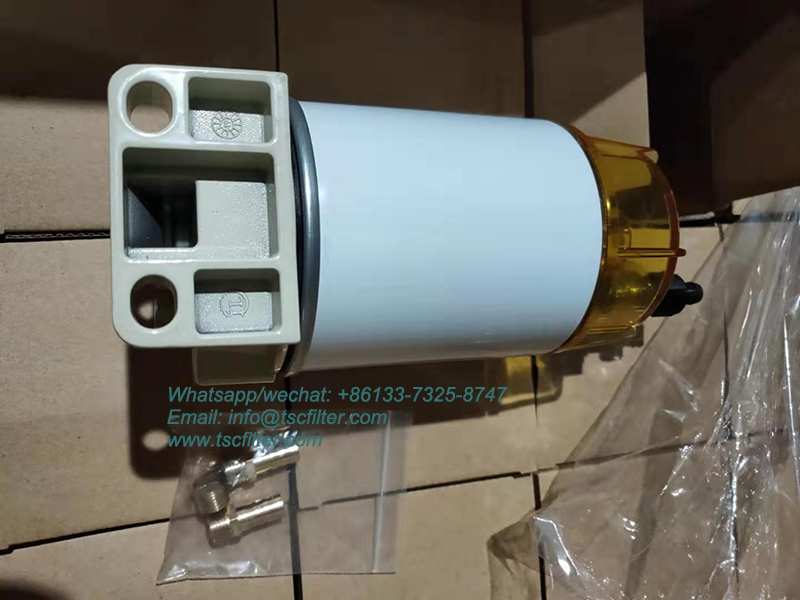

Marine Fuel filter Water Separator s3227 Complete kit

s3227 Assy Basic Information





Product information:

• Outer diameter 1 : 97mm
• Inner Diameter 2 : 80mm
• Height : 111mm
• Inner Diameter 1 : 90mm
• Thread Size 1 : S 80 X 2.5
• Thread Size : 1-14 UNF
• Filter type : Screw-on Filte
• Country/Region of Manufacture: China

Product Description
1. Loosen the self-venting drain plug to drain water from the bowl into a container.
2. Tighten the drain.
3. Use a primer bulb to fill the filter with fuel.
4. Start the engine and check to ensure there are no leaks.
Model: YANMAR : 206505-5020, VOLVO : 857633, ‎HONDA 17670-ZW1-801AH, MERCURY MARINE 35-886638, RACOR S3227, SUZUKI 99105-20005

To Replace
1. Loosen the self-venting drain plug and drain the into a container.
2. Remove the filter from the mounting bracket with the bowl connected.
3. Remove the bowl from the filter sand and clean the o-ring gland on the bowl. BOWL IS REUSABLE * DO NOT DISCARD IT.
4. Lubricate the o-ring with oil or grease and install on a bowl.
5. Install bowl onto new, tighten by hand.
6. Lubricate the filter top seal with oil or grease.
7. Fill the filter/bowl assemble with clean fuel and attach it to the mounting bracket, tighten it by hand.
8. Start the engine and check to ensure there are no leaks.

Replaces Mercury, Mercruiser, Quicksilver, Yamaha, Suzuki, SMI, Volvo Penta, Sierra, AquaPower, Honda, Tohatsu

FAQ

1. What’s the MOQ of the order?

Usually, the air filter MOQ is 50 pcs, and the fuel filter or oil filter MOQ is 100pcs, but if the products have in stock, it will be less. So it is better to be negotiable, pls contact us.



2. What’s the kind of packaging?

Do the neutral packaging or customer’s requirements.



3. Could I get some samples? How could I pay the sample payment?

A: We are honored to offer you samples. We accept the sample payment via Western Union or the Bank of China.



4. How long is your Delivery Lead Time?

A: If there is stock, the lead time is about one week after we get the payment,

if needs to be produced, 7-20 days after we get the prepay.



5. Could you Calculate the shipping cost for me?

A: Yes, we are honored to do that for you! Before the freight,

please well let us know which seaport or airport is near your place.



6. How long is the warranty?

A: Under normal working conditions, usually it is 8,000 to 10,000 kilometers.
