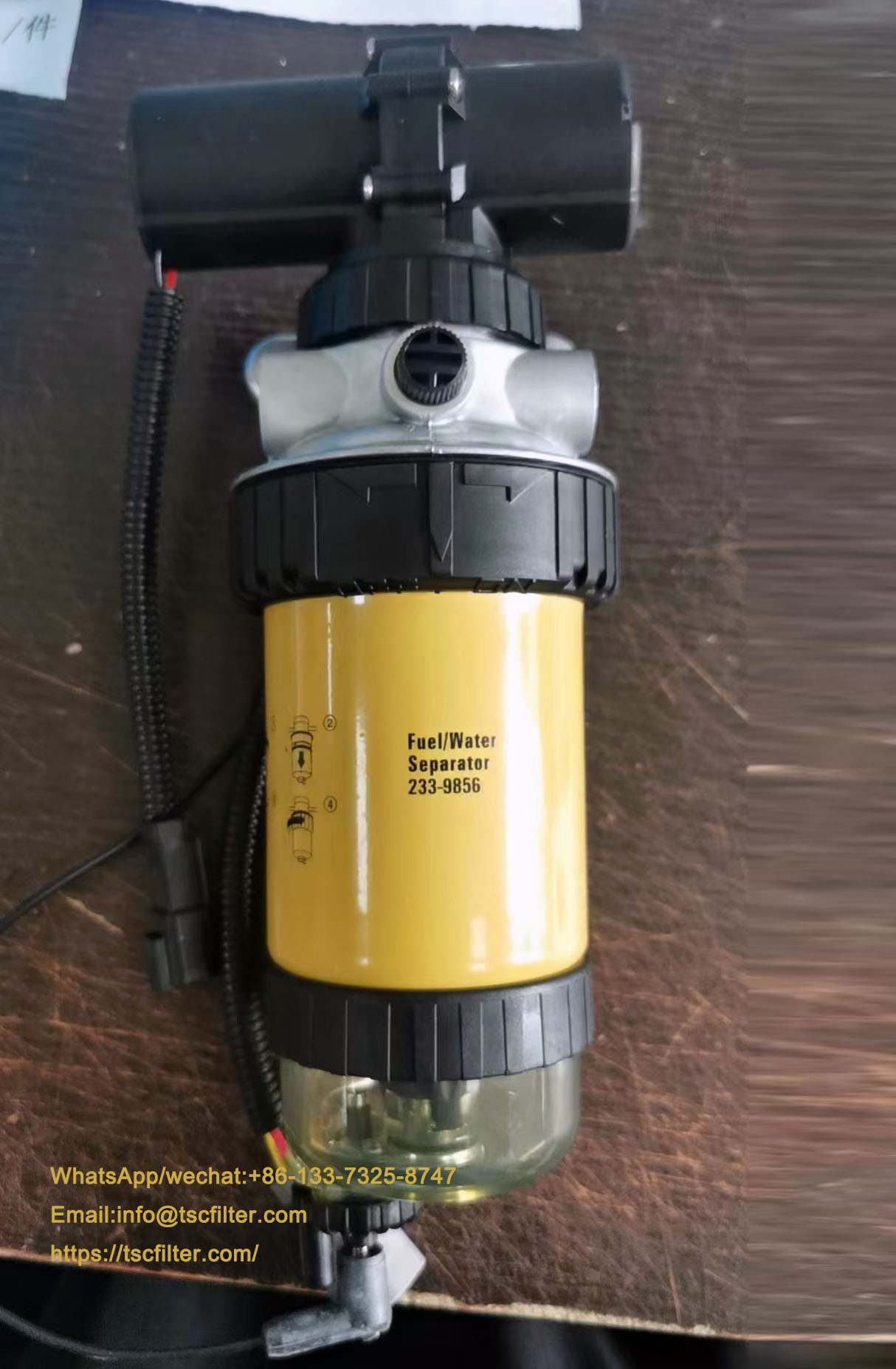

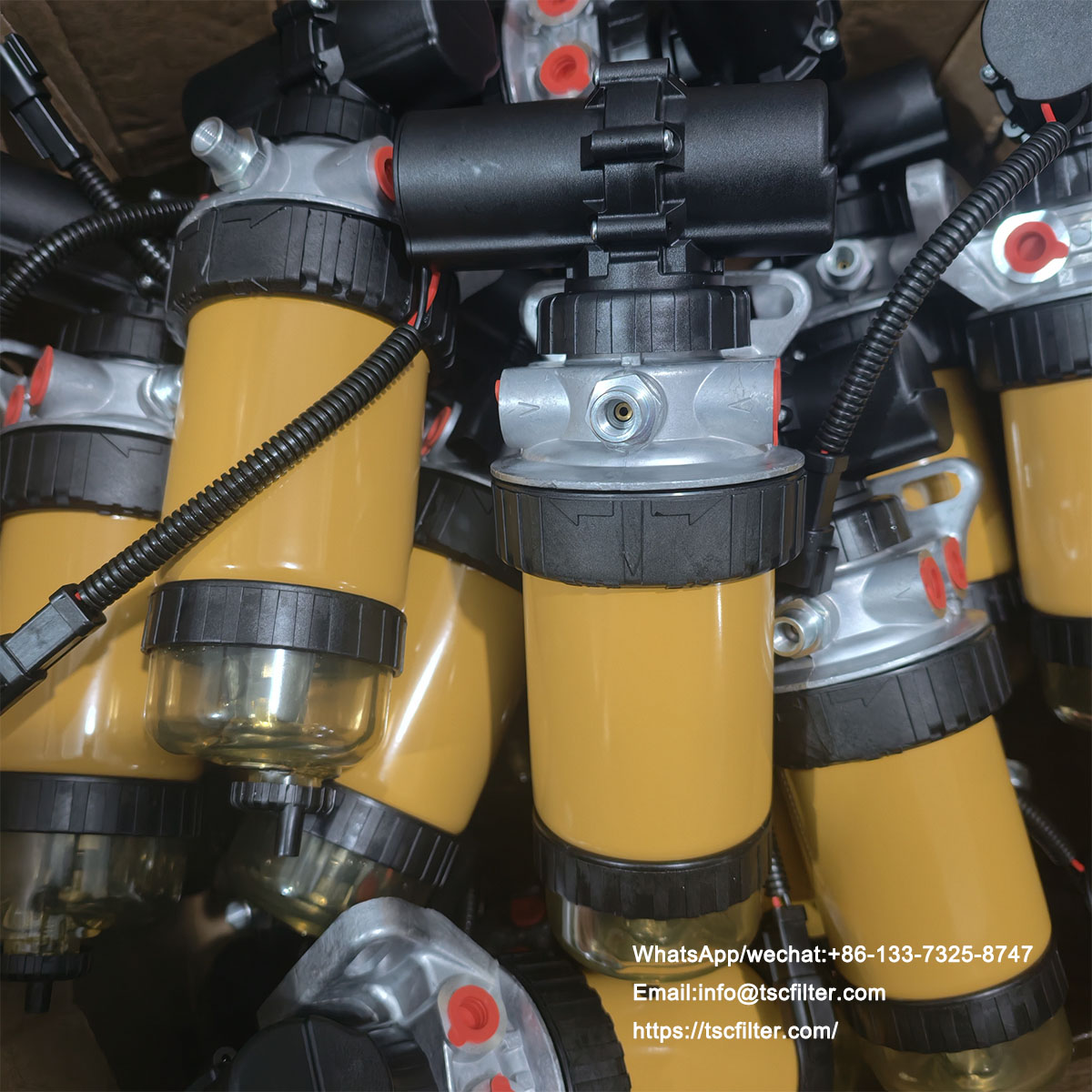

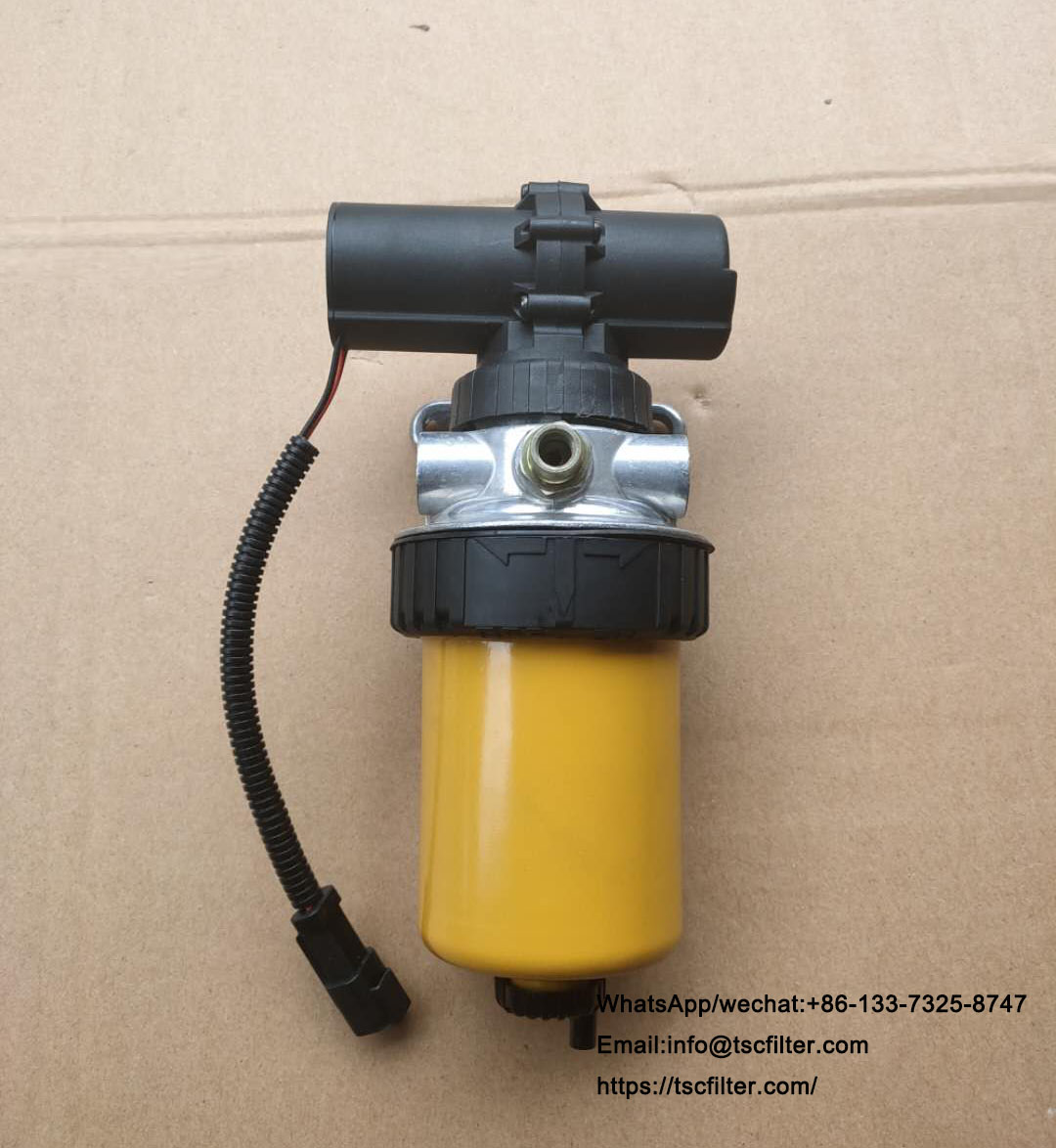

Fuel Filter Assembly 367-1814 3671814 For Marine

367-1814 Product information:

• Fuel Filter Assembly with filter OEM  250-6527, 233-9856
• Filter type: Screw-on Filter
• Country/Region of Manufacture: China

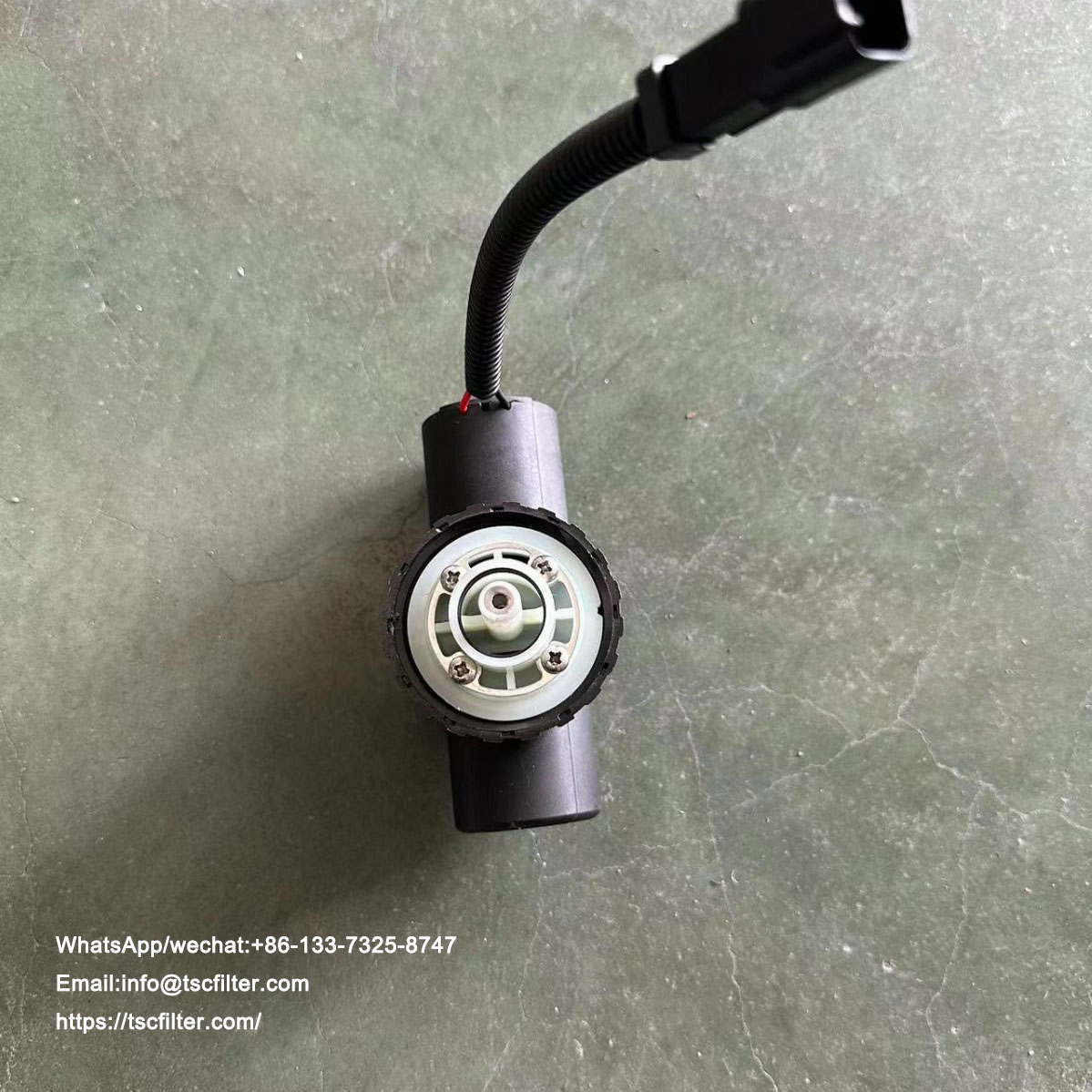

• 12V valve

1. Loosen the self-venting drain plug to drain water from the bowl into a container.
2. Tighten the drain.
3. Use a primer bulb to fill the filter with fuel.
4. Start the engine and inspect to ensure there are no leaks.

To Replace
1. Loosen the self-venting drain plug and drain it into a container.
2. Remove the filter from the mounting bracket with the bowl connected.
3. Remove the bowl from the filter sand and clean the O-ring gland on the bowl. BOWL IS REUSABLE * DO NOT DISCARD IT.
4. Lubricate the o-ring with oil or grease and install it on a bowl.
5. Install the bowl onto the new one; tighten by hand.
6. Lubricate the filter top seal with oil or grease.
7. Fill the filter/bowl assembly with clean fuel and attach it to the mounting bracket; tighten it by hand.
8. Start the engine and inspect to ensure there are no leaks.
