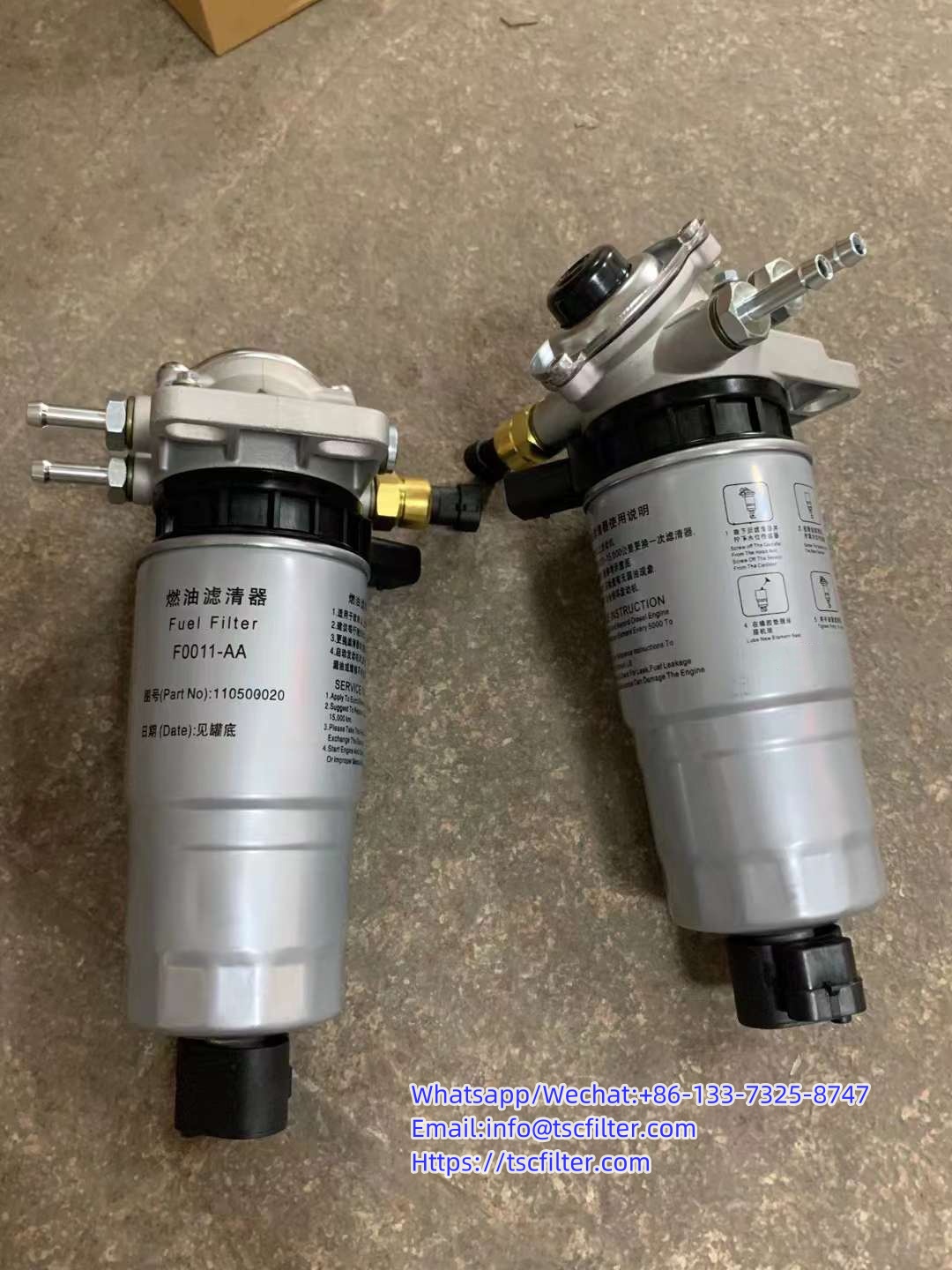

Fuel filter Assy F0011-AA 1105200-E11 complete kit

Product information:

• F0011-AA complete
• Filter Number:110500020
• Filter type: Screw-on Filter
• Country/Region of Manufacture: China

Product Description
1. Loosen the self-venting drain plug to drain water from the bowl into a container.
2. Tighten the drain.
3. Use a primer bulb to fill the filter with fuel.
4. Start the engine and check to ensure there are no leaks.

To Replace
1. Loosen the self-venting drain plug and drain it into a container.
2. Remove the filter from the mounting bracket with the bowl connected.
3. Remove the bowl from the filter sand and clean the o-ring gland on the bowl. BOWL IS REUSABLE * DO NOT DISCARD IT.
4. Lubricate the o-ring with oil or grease and install on a bowl.
5. Install bowl onto new, tighten by hand.
6. Lubricate the filter top seal with oil or grease.
7. Fill the filter/bowl assemble it with clean fuel and attach it to the mounting bracket, tighten it by hand.
8. Start the engine and check to ensure there are no leaks.
